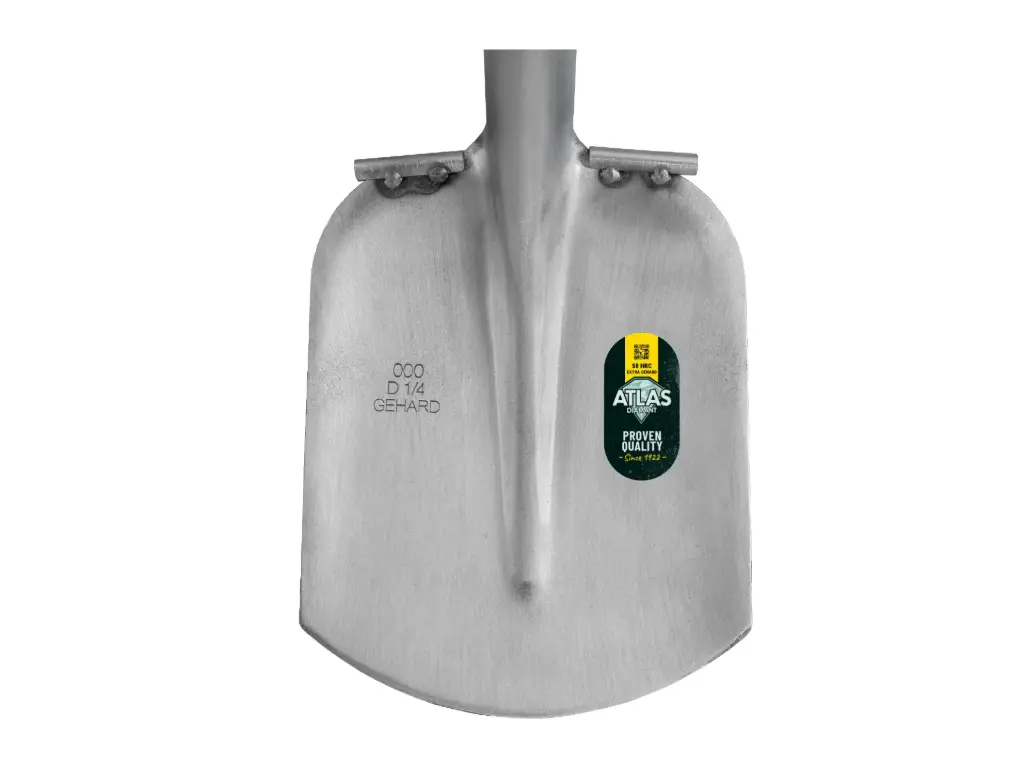

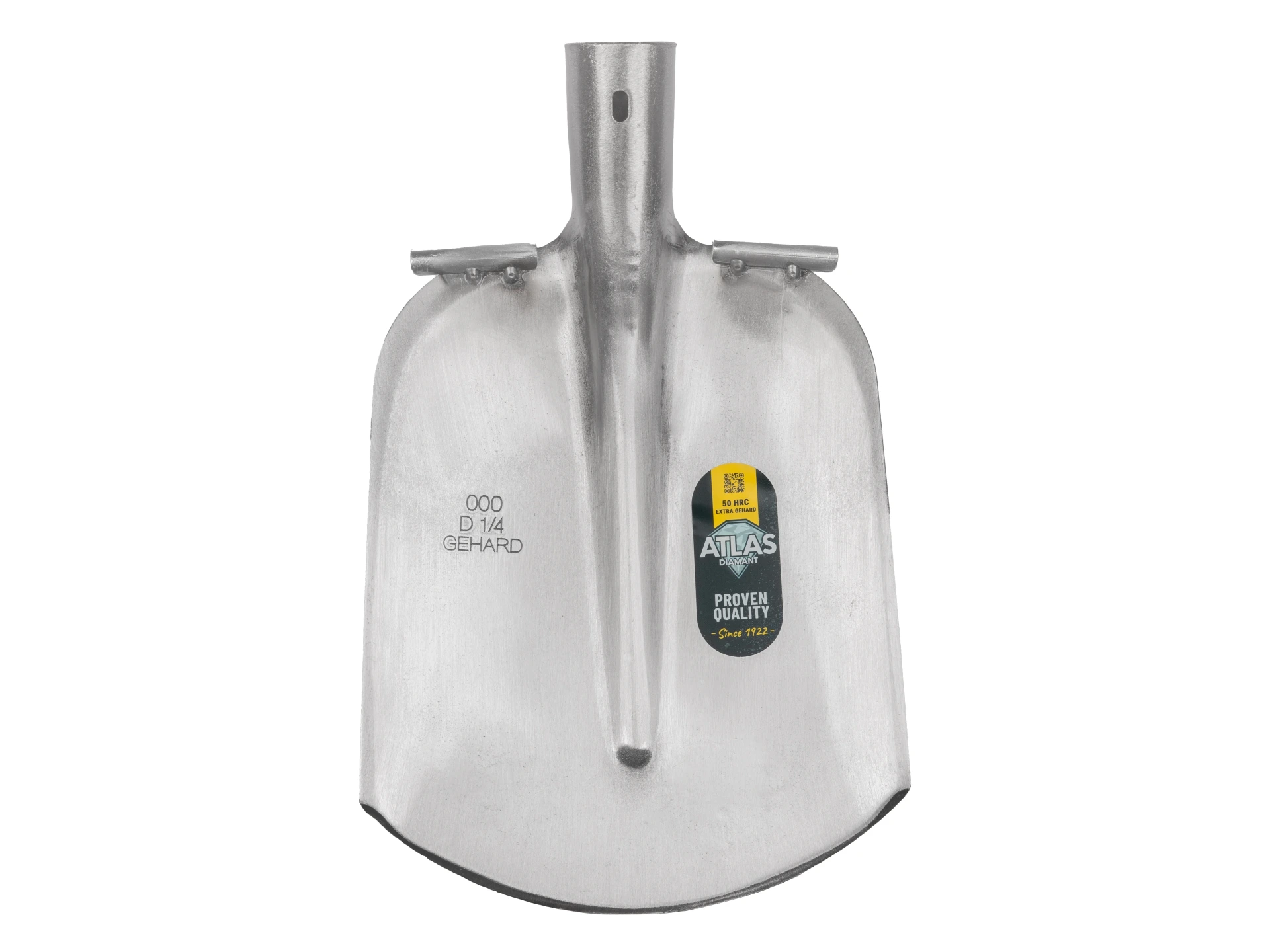

Digging shovel ATLAS DIAMANT 1/4 000 hardened, polished, ROUND TREADS, without handle

Digging shovel ATLAS DIAMANT, Drents model with socket angle 1/4 bent and blade size 000, supplied without handle. The plain polished blade is hardened, has a sharp edge and features a round tread. This loose shovel can be combined with a variety of different ATLAS gooseneck shovel handles, shovel handles, shovel handles, bent or double bent handles. Thanks to the tread, footwear will not be damaged.

This digging shovel model is the most requested version.

Explanation of socket angle
The socket angle indicates the angle relative to the blade. The higher the socket angle, the more angled the socket. This determines whether a shovel is designed for digging or scooping. The socket angle is measured from the ground to the socket, when the blade is lying flat on the ground.

Straight: the handle is almost straight on the blade
1/4: the socket is bent 35 mm, for example for digging shovels
1/2: the socket is bent 55 mm, for example for scoop shovels and concrete shovels
3/4: the socket is bent 70cm, for example for scoop shovels and deep shovels

Explanation of blade width
In the past, there were blade widths ranging from size 2 down to 0, with 2 being the largest. Over time, the blades had to become smaller due to working conditions, and smaller sizes were introduced.

The blade sizes for shovels and spades, from large to small, are: 2 – 1 – 0 – 00 – 000

Click here for more information about models, socket type, blade width & socket angles
