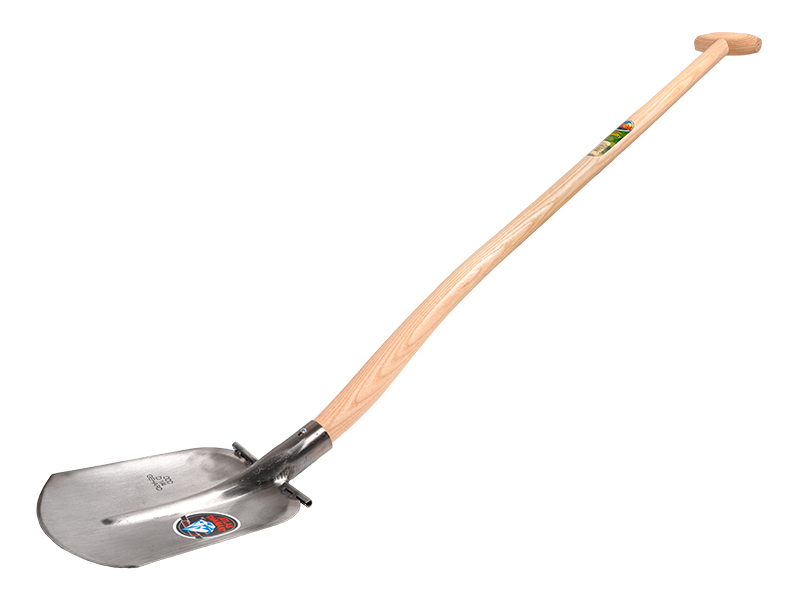

Digging shovel ATLAS DIAMANT 1/4 000 hardened, polished, round treads, with gooseneck shovel handle 110 cm double bent

Digging shovel ATLAS DIAMANT, Drents model with socket position 1/4 bent and blade size 000, complete with a double-bent Blijham handle in a length of 110 cm, fitted with a through-mount T-grip. The polished blade is hardened, has a sharp edge, and is fitted with a round tread. Thanks to the tread, footwear is not damaged.

The ATLAS Blijham handle is made from ash wood rootstocks, which contain the best wood. Ash wood is tough, shock-absorbing, and strong. The ash wood is computer-controlled re-dried in a climate chamber. This prevents the handle from shrinking, keeps the tool firmly attached to the handle, and allows the through-mount T-grip to be pressed onto the handle without glue or staples. In addition, the ATLAS handle is waxed with plant-based Carnauba, which ensures a longer service life and a pleasantly smooth handle, helping prevent blisters.

Explanation of socket position
The socket position indicates the angle relative to the blade. The higher the socket position, the more angled the socket is. This determines whether a shovel or digging shovel is designed for digging or scooping. The socket position is measured from the ground to the socket when the blade lies flat on the ground.

Straight: the handle is almost straight on the blade
1/4: the socket is bent 35 mm, for example for digging shovels
1/2: the socket is bent 55 mm, for example for scoop shovels and concrete shovels
3/4: the socket is bent 70 cm, for example for scoop shovels and deep shovels

Explanation of blade width
In the past, there were blade widths ranging from number 2 down to 0, with 2 being the largest. Over time, the blades had to become smaller due to working conditions, and smaller sizes were introduced.

The blade sizes for shovels and spades range from large to small: 2 – 1 – 0 – 00 – 000
