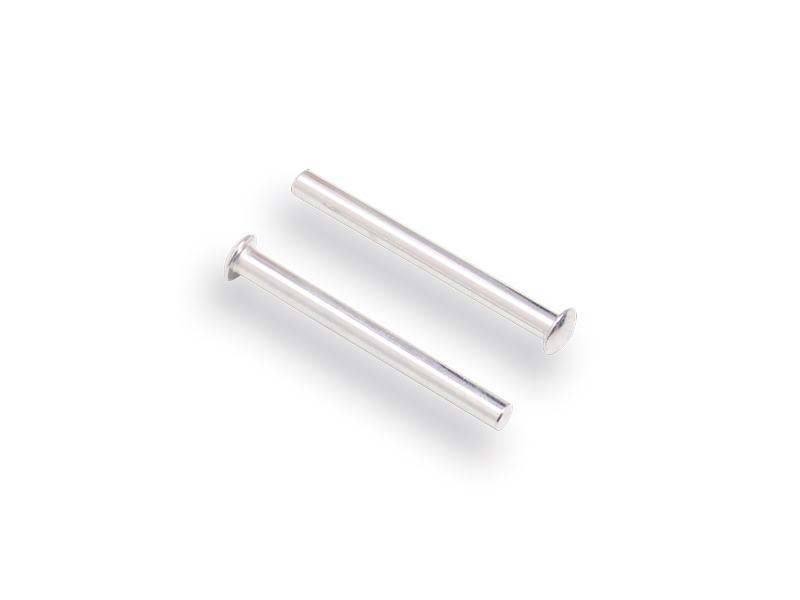

40 mm rivet for SPEAR & JACKSON spade handles (pack of 2)

40 mm rivet for SPEAR & JACKSON spade handles (pack of 2)

When the blade is in good condition, adjusting a spade yourself is a sustainable choice.

40 mm rivet for mounting milled-end spade shafts, packed per 2 pieces in a hanging blister.

These rivets are used to mount milled-end spade shafts to, among others, Spear & Jackson spades or Atlas gooseneck spades.

Adjust spade

1) Remove the old rivet by carefully filing off the round head and tapping it out.

2) Remove the old wood from the socket or neck. This is easiest when the wood is dry.

3) Carefully place the new handle into the swan neck and ensure that the grip is parallel to the spade blade.

4) Tap the handle upside down (with the spade blade up) on the floor, up to the milled end. Place a thick piece of cardboard on the floor beforehand to prevent damage to the handle or floor.

5) Then clamp the spade firmly in a bench vise.

6) Drill with a wood bit straight through the hole in the side of the socket or neck until halfway through the handle, then repeat this operation from the other side.

7) Insert the rivet through the hole.

8) Remove the spade from the vice and place the spade with the rounded side of the rivet on the now-tightened vice.

9) Gently peen the rivet all around with a light engineer's hammer.

10) The spade is now expertly adjusted and ready for use.
Agriculture & Vegetable Cultivation Construction and Do-it-yourself Industry and Workshop Paving & Road Construction Garden & Park
€ 1.61 € 1.61 (Tax excluded)

Suggested retail price € 1.95

  • Brand
  • Tool material

Te koop bij uw lokale vakhandel of online

Contact Us
Order unit: 1
Product code: 651590
EAN code: 8712129515908
Brand: Atlas
Tool material: Steel
