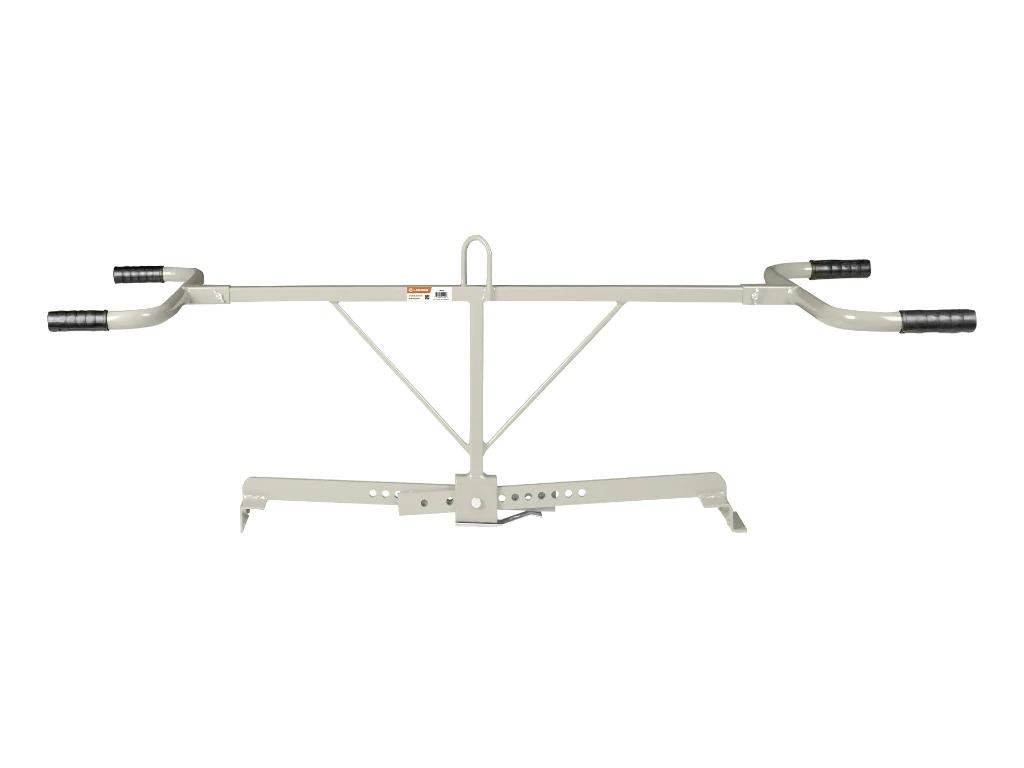

Tile clamp - LABORA tire clamp, 2-person, clamping range 500 - 1100 mm

Tile Clamp or Curb Clamp LABORA for 2-person use, adjustable with a clamping range of 500 to 1100 mm, maximum lifting capacity 150 kilos, jaw width 100 mm, throat depth 40 mm, equipped with a lifting eye on the top and 2 double handles with rubber grips. The Tile Clamp itself weighs 11 kilos.

Suitable for lifting, moving, and laying large tiles and curb stones, for example.

The LABORA Tile Clamp is delivered with the handles disassembled. They can be attached with the supplied wing bolts and nuts.

On one side of the Tile Clamp, the jaw is equipped with a support. By placing this on a previously laid tile or curb stone each time, tiles or curb stones can be laid tightly against each other. The desired clamping range is easily set using a steel pin.

The 57 cm wide handles of the LABORA Tile Clamp ensure that the users stand neatly straight in front of the tile or curb stone to be lifted and that the lift is made straight up. The handles are equipped with rubber grips for a firm hold. The handles are detachable for transport or storage.

Thanks to the wide handles and operation by 2 people, work can be carried out in an ergonomic, upright position. The strong, high-quality steel of the LABORA Tile Clamp has a protective powder coating that ensures a longer service life.
